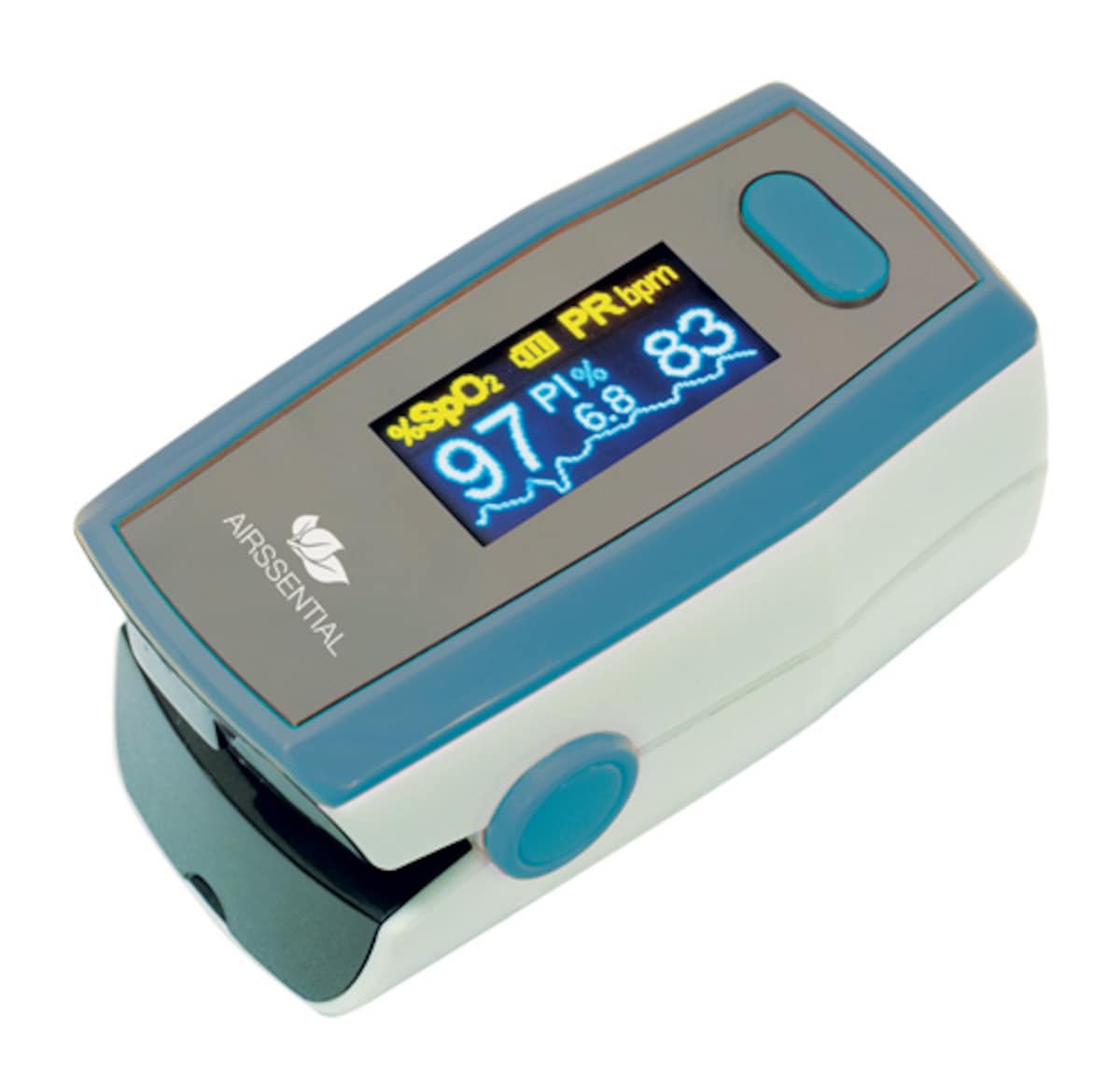

Pulse Oximetry is used for spot checking of blood oxygen saturation and pulse rate. This pulse oximeter is calibrated to display functional oxygen saturation in % Sp02.

Examples of the conditions where pulse oximetry is used include the management of chronic obstructive pulmonary diseases, assessing therapy in infants with bronchiolitis, grading the severity of an asthma attack or management of home oxygen therapy and provides instant warnings for necessary action.



Dimensions: 62 mm (L) x 33mm (W) x 32mm (D)

Weight: Approx: 60g including 2 x AAA battery

Power: 2xAAA 1.5v alkaline battery

Power Consumption: Less than 30mA (Normal)

Operating Temperature: 5°C to 40°C

Storage Temperature: –25°C to 55°C

Relative Humidity: 15% to 85% non-condensing

Air Pressure: 86Kpa-106Kpa

Operating Altitude: 0-2000 meters

Anti-electric Shock Type: Internally powered equipment

Anti-electric Shock Degree: Type BF equipment

EMC: Type B

Mode of operation: Continuous Operation

Degree of ingress protection: IP22*
